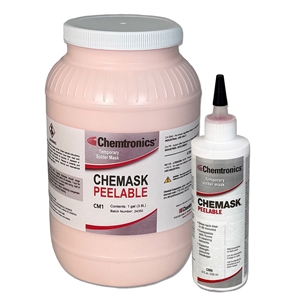

Chemask Peelable Solder Mask

Chemask® is a fast curing peelable solder masking agent. It contains natural latex formulated with high-temperature resistant compounds that protect component-free areas during wave soldering. Chemask® may be used to protect pins, posts, contacts and edge connections during conformal coating processes.

CLICK HERE FOR MASK SELECTION GUIDE

Features & Benefits

  • Dries tack-free in 30 minutes
  • Easy to use — just peel off dried Chemask® masking agent
  • Latex material is compatible with flux systems and stable with cleaning solvents
  • Natural latex has superior strength and elongation; can stretch to five times cured length without breaking

Applications

  • Ideal for protecting contacts during wave soldering
  • Use as a protective mask during conformal coating process for switches, pins, posts, contact and edge connections
Specifications MIL-STD-2000A, PARA.5.3.18
Call-outs United Airlines MAS-3000
Shelf Life 2 yrs.
Shipping Name Coating Compound Not Regulated

Swipe to View Add to Cart Button

Part # Size Units Per Case Price Per Case Add To Cart

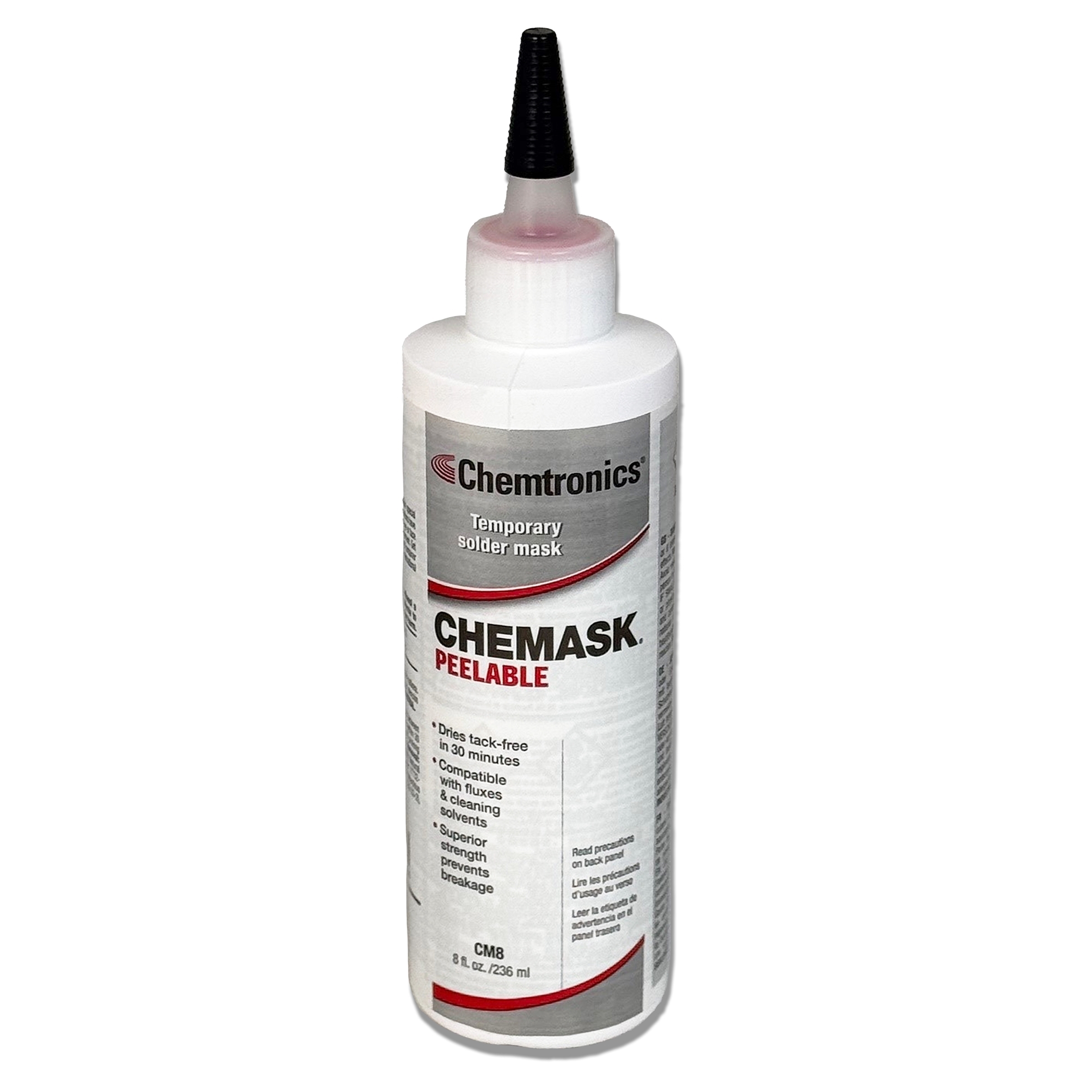

CM8

8 fl oz./ 236 ml squeeze bottle

24 bottles $468.96

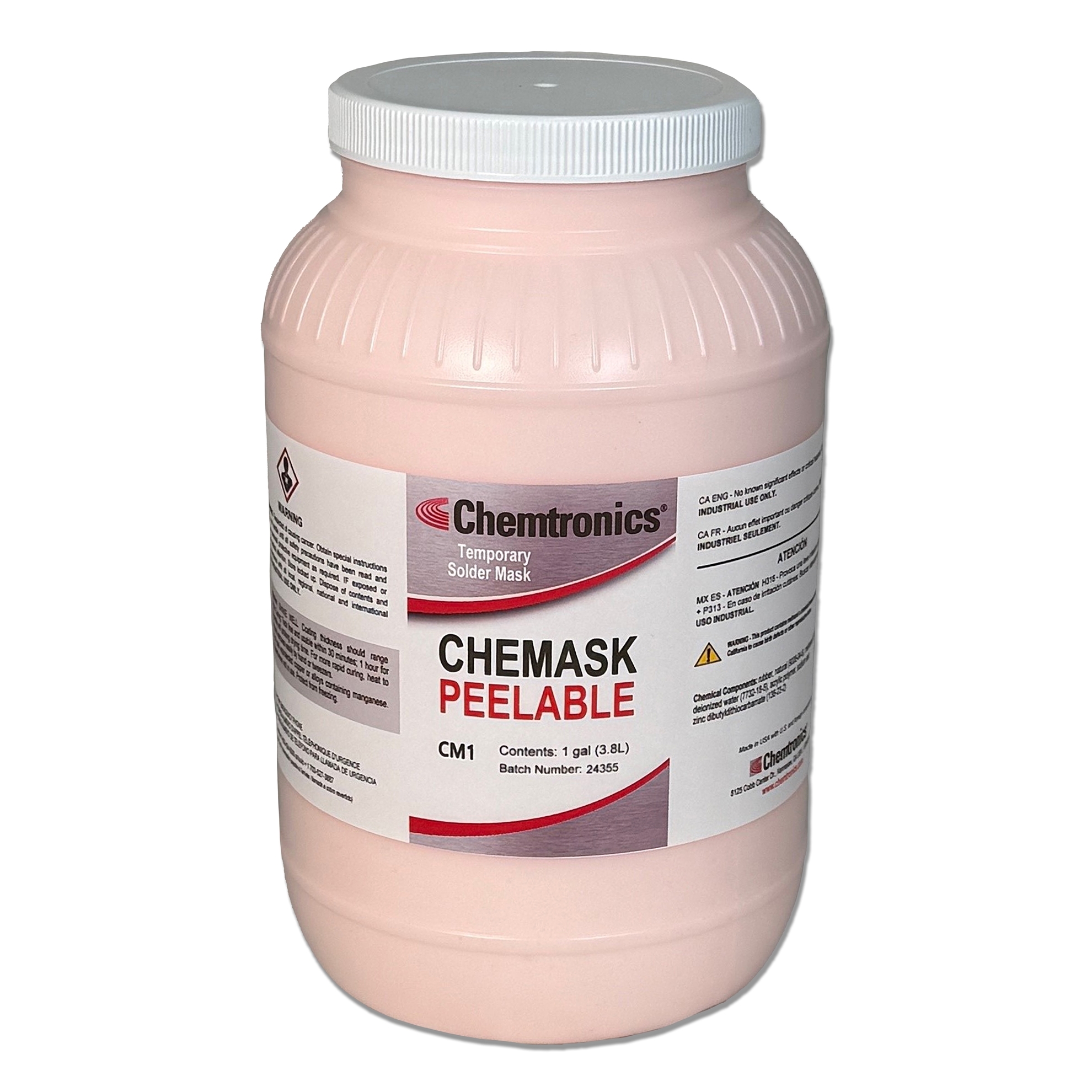

CM1

1 gallon / 3.7 liters container

1 container $197.11
Order from an authorized distributor

FAQ's

How do I remove temporary solder mask?

Peelable mask is usually removed by hand or with tweezers. Resourceful engineers have come up with devices with rotating brushes and other creative methods, but there is no commercially available equipment to speed this process along.

How can I prevent solder from breaking off in the through-holes?

Believe it or not, the way you hold the bottle can make a big difference on how easily the cured mask is removed. Many operators hold the bottle at a 90° angle as they drag the dispensing tip across the area they are masking. This has a tendency to force the mask through the vias and causes 3 potential problems: 1) The mask tends to stick to the inside of the thru-holes, and may push out the other side and mushroom out. This creates a plug on the other side, which increases the chance of breakage when peeling off the cured mask. 2) The material inside the thru-holes are less accessible if washing off mask in an aqueous cleaning system. 3) The bead of mask is thinner when holding the bottle at 90°. When using a peelable mask, this bead acts as a draw-string, so a thinner strip has more of a tendency to become brittle in high soldering temperatures, and is more likely to break when removing the cured mask.

How do I use temporary solder mask to protect contacts from conformal coating?

If you think of spot mask as basically liquid masking tape, the application become more intuitive: 1) Apply the mask to the contact areas to protect. Allow mask to fully cure. 2) Apply the conformal coating. 3) After the coating is dry to the touch, but before it is fully cured, peel off the mask. Otherwise it could create a cracked, ragged edge, or even pull up the coating.

How to I apply temporary solder mask?

Spot mask can be hand applied, dispensed with a pneumatic system, or stencil printed. To hand apply using a squeeze dispensing bottle: 1) hold the mask bottle upright, but at an angle (around 60°), 2) squeeze the bottle as you drag is across the areas to be masked, 3) for best results, allow mask to fully cure before running through extreme soldering temperature.

How do I figure out the shelf life of a product?

The shelf life of a product can be found on either the technical data sheet (TDS), available on the product page, or by looking on the certificate on conformance (COC). The COC can be downloaded by going to https://www.chemtronics.com/coc. Once you have the shelf life, you will need to add it to the manufacture date for a use-by date. The manufacture date can be identified by the batch number. The batch code used on most of our products are manufacture dates in the Julian Date format. The format is YYDDD, where YY = year, DDD = day. For example, 19200 translates to the 200th day of 2019, or July 19, 2019. This webpage explains and provides charts to help interpret our batch numbers: https://www.chemtronics.com/batch-codes.

How do I avoid peelable solder mask from breaking off and leaving residue behind?

The follow are factor to consider when trying to avoid breakage: 1) Curing – Partially cured mask will have more of a tendency to break or leave residue. 2) Temperature and duration in extreme heat – Mask is designed for wave soldering, which is about a second of exposure to molten solder temperatures (generally 550°-650°F). If the mask is sent through a reflow oven the duration is much longer, which can lead to more mask brittleness. If the mask is exposed to high-temperature solder (e.g. silver), it can also lead to more brittleness. 3) Application method – When hand applying, we recommend holding the bottle at about a 60° angle, rather than upright at 90°. That tends to apply the material as a thick blanket over the areas to be masked. When the bottle is held at 90°, the mask is generally applied thinner, and is forced through holes and around components. Those thin areas are more likely to become brittle and stay behind, and mask pushed into holes and around components is harder to remove, so more likely to break.

Articles

Ultimate Guide to Temporary Solder Mask

What is Temporary Solder Mask Temporary solder mask (also called “spot mask”) is used every day in the assembly of electronic circuit boards. Solder mask is engineered to protect thru-holes or “vias” in wave soldering. It has to withstand extreme soldering temperatures and...
Read This Post

Temporary Solder Mask Case Study: How Chemask Helped an EMS Company Realize an Extra 500k in Revenue

In this post, we’ll cover how a Washington based Electronics Manufacturing Services (EMS) company was able to open up their production capacity for a potential additional revenue of $520,000 per year.  In addition, they were able to save 208 hours a year in labor and $2,070 a year in DI...
Read This Post
