Soder-Wick Rosin Flux Desoldering Braid

*=required field

Soder-Wick Rosin Flux Desoldering Braid

Soder-Wick® offers the state of the art in desoldering technology. Soder-Wick® is designed for today’s heat sensitive electronic components using lighter mass, pure copper braid construction that allows for better thermal conductivity, even at low temperatures. Soder-Wick® responds faster than conventional desoldering braids thereby minimizing overheating and preventing PCB damage.

All wick is sealed in nitrogen-purged packaging to avoid corrosion and loss of performance from moisture and oxygen.

Related Content: Desoldering Braid Tips & Tricks (Video and Article)

Features & Benefits

  • Soder-Wick® Rosin 5' and 10' spools packaged in ESD-safe static dissipative bobbins
  • Minimizes the risk of damage associated with static electricity
  • Noncorrosive ultra high purity Type R rosin flux
  • Minimizes the risk of heat damage to the board
  • Will not leave ionic contamination on the boards

Applications

  • Soder-Wick® Rosin safely removes solder in all applications requiring Type ROL0 rosin flux
  • BGA braid sized and designed specifically for BGA pad and chip rework/repair so entire BGA pads cleaned in three to four passes

Specifications:

  • MIL-F-14256 F type R flux
  • NASA-STD-8739.3 Soldered Electrical Connections
  • DOD-STD-883E, Method 2022
  • ANSI/IPC J STD-004, Type ROL0
Specifications MIL-F-14256F, Type R
NASA-STD-8739.3
DOD-STD-883E, Method 2022
ANSI/IPC J STD-004, Type ROL0
Bellcore TR-NWT-000078
ANSI/IPC J SF-818
MIL-STD-2000A
MIL-B-81705C
MIL-STD-1686C
MIL-HDBK-263B
Shelf Life 2 Yrs
Shipping Name Copper Wire

Articles

Ultimate Guide to Cleaning Electronics

White residues can generally be cleaned by a flux remover. If the residues are the result of insufficient solvency of the original cleaning process, a stronger solvent cleaner may be required. Often agitation is required to remove the residues, which may include a wipe, swab, brush, or an aeroso...
Read This Post

Ultimate Guide to Benchtop PCB Rework & Repair

The reality is that no soldering operation produces perfect assemblies every time. Even the highest quality components fail from time-to-time. That’s why understanding the best rework and repair methods and materials is so important for those who manufacture, maintain, or repair printed ci...
Read This Post

Why Flux Pens Make PCB Repair Easier

Flux is needed to prevent oxidation that tends to form when hot metals come in contact with the air. During printed circuit board repair and soldering, it's common to see liquid flux from the wave soldering equipment poured into jars and applied with an acid brush. More is better, right?...
Read This Post

12 Easy Tips to Improve Your PCB Desoldering Today

By Grant Price, Product Manager, Chemtronics The reality is that no soldering operation produces perfect assemblies every time. Even the highest quality components fail from time-to-time. That’s why desoldering is so important for those who manufacture, maintain or repair pr...
Read This Post

Swipe to View Add to Cart Button

Part # Size Units Per Case Price Per Case Add To Cart
80-1-5

#1 white, 0.030"/0.8mm width
5' / 1.5 m length on SD bobbin

25 bobbins in Performance Pak™ $104.00
80-1-10

#1 white, 0.030"/0.8mm width
10' / 3.0 m length on SD bobbin

25 bobbins in Performance Pak™ $181.50
50-1-25

#1 white, 0.030"/0.8mm width
25' / 7.5 m length on spool

1 spool $17.99
SW18015

#1 white, 0.030"/0.8mm width
5' / 1.5 m length on SD bobbin
10 bobbins per VacuPak™ Can

6 cans $246.24
80-2-5

#2 yellow, 0.060"/1.5mm width
5' / 1.5 m length on SD bobbin

25 bobbins in Performance Pak™ $104.00
80-2-10

#2 yellow, 0.060"/ 1.5mm width
10' / 3.0 m length on SD bobbin

25 bobbins in Performance Pak™ $181.50
50-2-25

#2 yellow, 0.060"/ 1.5mm width
30' / 7.5 m length on spool

1 spool $17.99
50-2-100

#2 yellow, 0.060"/ 1.5mm width
100' / 30.5 m length on spool

1 spool $69.68
50-2-500

#2 yellow, 0.060"/1.5mm width
500' / 152.5 m length on spool

1 spool $347.78
SW18025

#2 yellow, 0.060"/1.5mm width
5' / 1.5 m length on SD bobbin
10 bobbins per VacuPak™ Can

6 cans $246.24

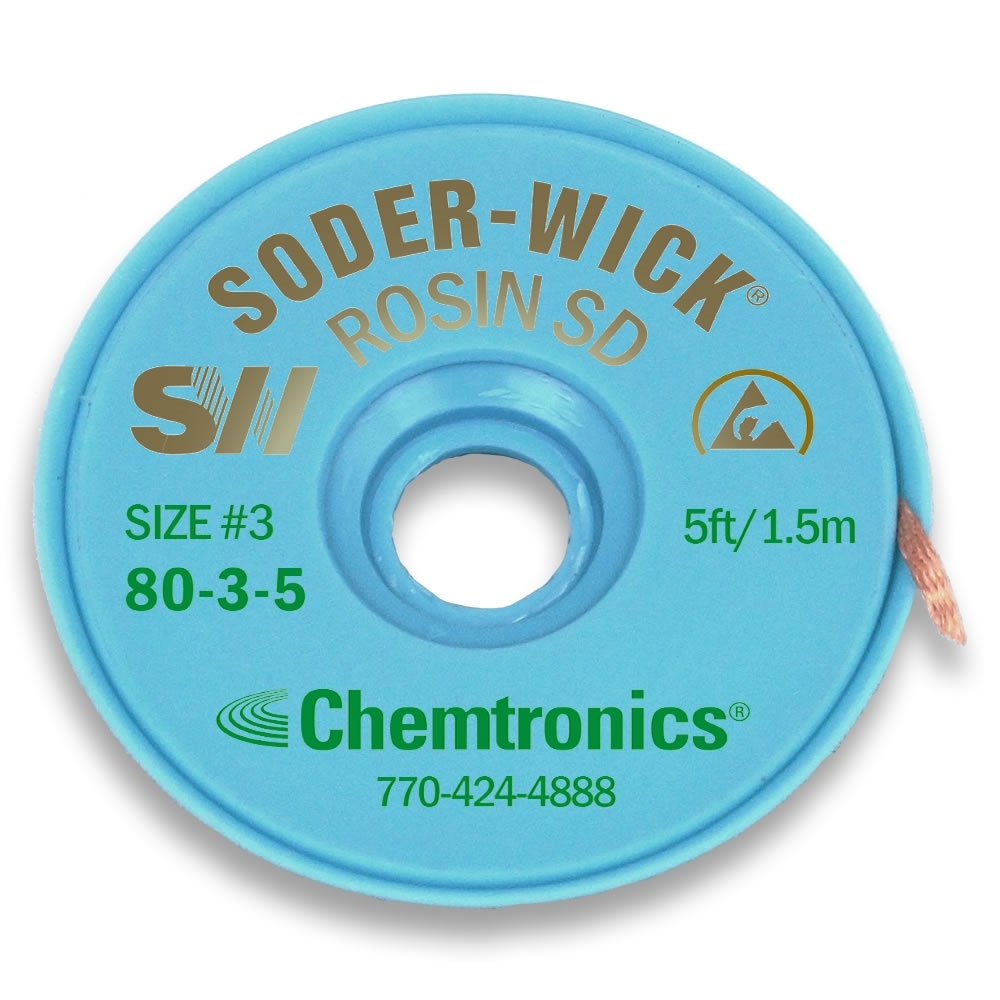

80-3-5

#3 green, 0.080"/2.0mm width
5' / 1.5 m length on SD bobbin

25 bobbins in Performance Pak™ $111.25
80-3-10

#3 green, 0.080"/2.0mm width
10' / 3.0 m length on SD bobbin

25 bobbins in Performance Pak™ $193.00
50-3-25

#3 green, 0.080"/2.0mm width
25' / 7.5 m length on spool

1 spool $18.50
50-3-100

#3 green, 0.080"/2.0mm width
100' / 30.5 m length on spool

1 spool $72.51
SW18035

#3 green, 0.080"/2.0mm width
5' / 1.5 m length on SD bobbin
10 bobbins per VacuPak™ Can

6 cans $265.86
80-4-5

#4 blue, 0.110"/2.8mm width
5' / 1.5 m length on SD bobbin

25 bobbins in Performance Pak™ $120.25
80-4-10

#4 blue, 0.110"/2.8mm width
10' / 3.0 m length on SD bobbin

25 bobbins in Performance Pak™ $213.25
50-4-25

#4 blue, 0.110"/2.8mm width
25' / 7.5 m length on spool

1 spool $20.41
50-4-100

#4 blue, 0.110"/2.8mm width
100' / 30.5 m length on spool

1 spool $80.14
SW18045

#4 blue, 0.110"/2.8mm width
5' / 1.5 m length on SD bobbin
10 bobbins per VacuPak™ Can

6 cans $285.42
80-5-5

#5 brown, 0.145"/3.7mm width
5' / 1.5 m length on SD bobbin

25 bobbins in Performance Pak™ $132.25
80-5-10

#5 brown, 0.145"/3.7mm width
10' / 3.0 m length on SD bobbin

25 bobbins in Performance Pak™ $237.75
50-5-25

#5 brown, 0.145"/3.7mm width
25' / 7.5 m length on spool

1 spool $22.90
SW18055

#5 brown, 0.145"/3.7mm width
5' / 1.5 m length on SD bobbin
10 bobbins per VacuPak™ Can

6 cans $314.82
80-6-5

#6 red, 0.210"/5.3mm width
5' / 1.5 m length on SD bobbin

25 bobbins in Performance Pak™ $140.75
50-6-25

#6 red, 0.210"/5.3mm width
25' / 7.5 m length on spool

1 bobbin $24.34
80-BGA-5

BGA, 0.210"/5.3mm width
5' / 1.5 m length on SD bobbin

6 cans $160.50
