How do you apply liquid conformal coating? (CTSR-X, CTLED) - Banner

How do you apply liquid conformal coating? (CTSR-X, CTLED)

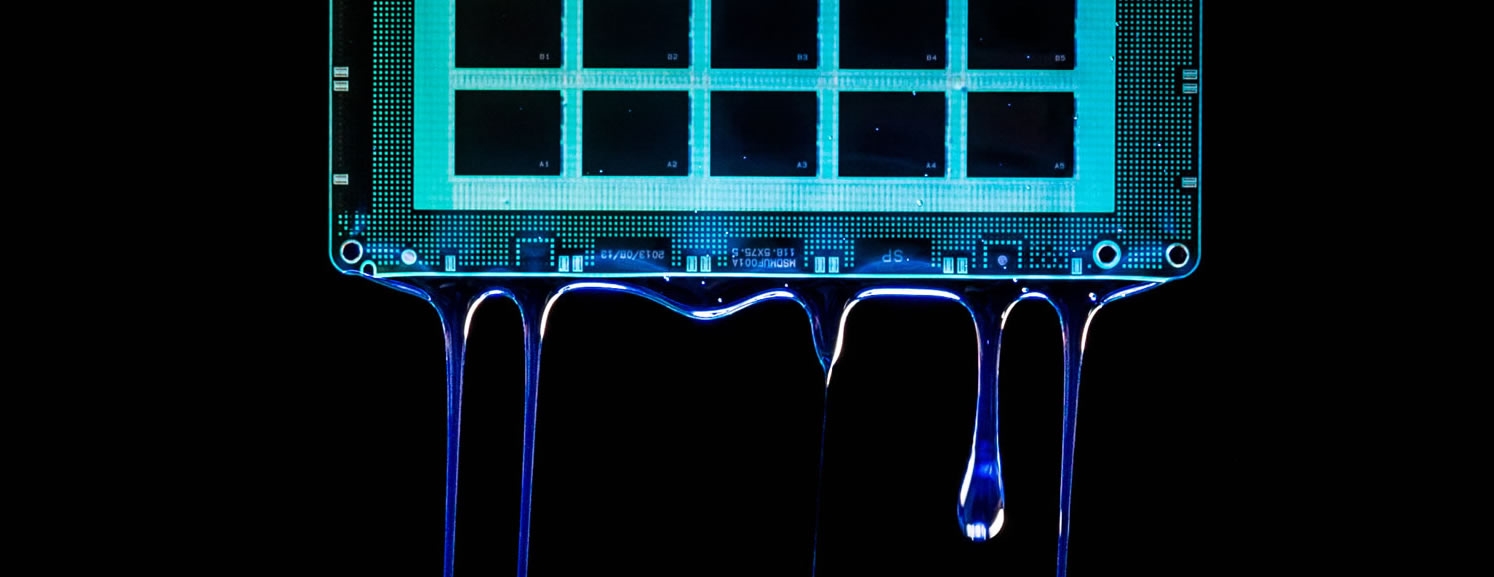

Apply to clean, moisture-free surface.  Areas not requiring coating should be masked. Application: Coating may be applied by spraying, brushing, dipping or flow coating.  Allow coating to flow around components. Cure:  Room temperature cure: A 1.0 mil coating will be tack-free in 30 minutes.  Full cure requires 24 hours @ 77˚F (25˚C). Heat cure: 30 minutes @ 90˚F (32˚C) then 100 minutes @ 199˚F (93˚C). An open vessel of water placed in the drying chamber will facilitate curing. UV detectable for QC inspection. Removal:  Coating may be removed by soaking in Electro-Wash® Two Step Cleaner Degreaser. Use CircuitWorks® Conformal Coating Remover Pen for spot removal. After the new component is installed, areas should be cleaned and recoated.
